Machining Image Gallery
Our customers will benefit from our state of the art machine capabilities and equipment. We have the capability of producing parts directly from 3D models by utilizing CAD/CAM programming software.

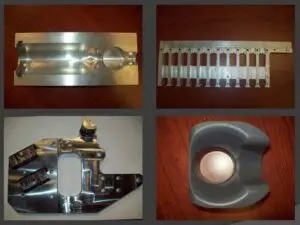

2D & 3D Machining Using CAD/CAM Software
CNC Turning With Live Tooling
Vertical & Horizontal CNC Milling
Build To Provided Drawings
Machined From Concept
Reverse Engineering
In-House Quality Inspection
| MACHINE | X | Y | Z | 4th Axis |

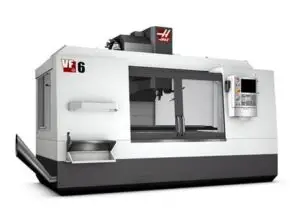

| HAAS VF6 50 TAPER | 64 | 32 | 30 | YES |
| HAAS VM2 MOLD SERIES | 30 | 20 | 25 | NO |
| HAAS VF4 SUPER SPEED | 50 | 20 | 25 | YES |
| HURCO VMX84 | 84 | 34 | 30 | NO |

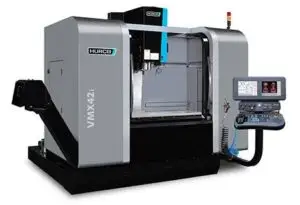

| HURCO VMX42i | 40 | 24 | 24 | NO |
| HURCO VMX 30 | 30 | 20 | 24 | NO |
| HURCO VMX30 | 30 | 20 | 24 | NO |
| HURCO VM2 | 40 | 18 | 18 | NO |
| HURCO VM2 | 40 | 18 | 18 | NO |
| HURCO VM1 | 26 | 14 | 18 | NO |
| ACER E-MILL PROTO-TRAK CONTROL | 30 | 10 | 6 | NO |
| ACER E-MILL PROTO-TRAK CONTROL | 30 | 10 | 6 | NO |
| ACER E-MILL PROTO-TRAK CONTROL | 30 | 10 | 6 | NO |
| SOUTHWESTERN IND. PROTO-TRAK BED MILL | 30 | 10 | 20 | NO |
| SOUTHWESTERN IND. PROTO-TRAK K4 MILL | 30 | 10 | 6 | NO |
| CHEVALIER PROTO-TRAK MILL | 26 | 10 | 6 | NO |
| Machine | X | Y | Z | 4th Axis |

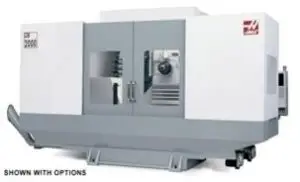

| HAAS EC 2000 HORIZONTAL WITH 4TH AXIS | 84 | 40 | 30 | YES |

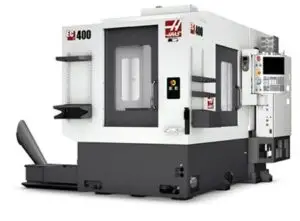

| HAAS EC 400 HORIZONTAL PALLET CHANGER | 22 | 20 | 20 | YES FULL |
| DEVLIEG 4K 72 | 72 | 48 | 15 | INDEX TABLE |
| Machine | X | Y | Z | 4th Axis |

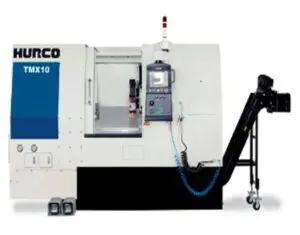

| HURCO TMX10MY LIVE TOOLING | 9.15 | 4.4 | 26 | 14.76 MAX TURNING DIA |
| HURCO TM8 | 7 | 14 | 10.1 MAX TURNING DIA | |
| SOUTHWESTERN IND. PROTO-TRAK 2460 | 24 | 60 | 16″ CROSS SLIDE CLEARANCE | |
| SOUTHWESTERN IND. PROTO-TRAK 1745 | 17 | 45 | 12″ CROSS SLIDE CLEARANCE |
| Machine | X | Z | 4th Axis | |
| ACER LATHE | 16 | 60 | 12″ CROSS SLIDE CLEARANCE | |
| HARRISON 600 | 24 | 120 | 20″ CROSS SLIDE CLEARANCE | |
| HARRRISON 250 | 10 | 24 | 6″ CROSS SLIDE CLEARANCE |
| Machine | X | Z | 4th Axis | |
| CHEVALIER AUTOMATIC SURFACE GRINDER | 30 | 16 | ELECTRO MAGNET | |

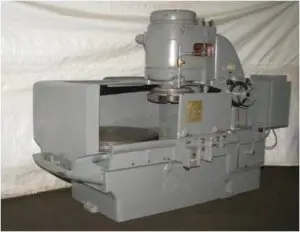

| BLANCHARD NO. 18 ROTARY SURF. GRINDER | 42 INCH DIAMETER WHEEL | ELECTRO MAGNET | ||
| K.O. LEE 7 X 14 MANUAL SURFACE GRINDER | 14 | 7 | MANUAL MAGNET |
| Machine | X | Z | ||
| LANDIS | 18 | 80 | ||
| BROWN AND SHARPE | 12 | 24 |
| Machine | X | Y | Z |
| MITSUBISHI FX 2 | 20 | 14 | 12 |
| MILLER 250 TIG WELDER | ||||
| MILLER PORTABLE TIG WELDER | ||||
| QTY 4 STEEL MIG WELDERS | ||||
| QTY 1 ALUMINUM OR STAINLESS MIG WELDER | ||||
| PLASMA TORCH | ||||
| QTY 2 ACETYLENE TORCHES | ||||
| 200 TON HYDRALIC PRESS | ||||
| 90 TON SCOTCHMAN IRON WORKER | ||||
| MISC. BENDING EQUOIPMENT | ||||
| COSEN AUTOMATIC HORIZONTAL BANDSAW | ||||
| MARVEL TILTING VERTICAL BANDSAW | ||||
| DO ALL MANUAL VERTICAL BANDSAW |
| LUCIFER HEAT TREAT OVEN | ||||
| FLAME HARDENING |
| (Qty 5) 50 FOOT SPAN, 5 TON CRANES | ||||
| (QTY 5) 5000 LB FORKLIFTS |
| POWDER COATING | ||||

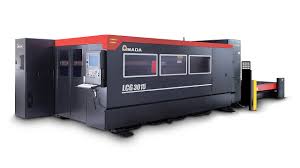

| LASER CUTTING | ||||
| ROLLING METALS | ||||
| FORMING METALS | ||||
| METAL COATINGS | ||||
| EXCESSIVELY LARGE PART MACHINING | ||||

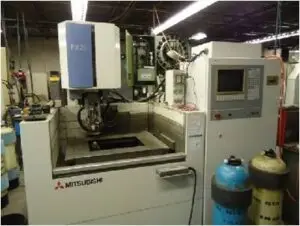

| SINKER EDM | ||||
| WATER JETTING | ||||
| SPECIAL GRINDING | ||||
| GEAR CUTTING | ||||
| DEEP HOLE DRILLING |
| Machine | X | Z | 4th Axis | |
| CHEVALIER AUTOMATIC SURFACE GRINDER | 30 | 16 | ELECTRO MAGNET | |
| BLANCHARD NO. 18 ROTARY SURF. GRINDER | 42 INCH DIAMETER WHEEL | ELECTRO MAGNET | ||
| K.O. LEE 7 X 14 MANUAL SURFACE GRINDER | 14 | 7 | MANUAL MAGNET |
We have the capability of producing parts directly from 3D models by utilizing CAD/CAM programming software
